2006 Yamaha Road Warrior Project Dragon Fly Road Warrior

Road warrior Stock ConfigurationThe Road Star Warrior took the cruiser's low-end muscle and combined it with the handling and maneuverability of a sport bike. In fact, the suspension is derived from our the YZF-R1, and the engine is wrapped in a high-tech aluminum chassis. Whether you call the Warrior a power cruiser or a sport bike, you're going to want it. We are going to start our project with a bran new 2006 left over we put 600 miles on the bike to make sure there are no manufactures defects performed the first service and will start the disassembly right after Thanksgiving 2007 we will add pages here to mark the progress of the build and will add an entire section to our tech forum dedicated solely to the Road Warrior.

Stock Configuration Information & Features

Engine:

High-performance, air-cooled, long-stroke, OHV, 4 valves per cylinder, 48°, V-twin powerplant produces massive torque and strong acceleration.

Traditional pushrod valve actuation keeps engine height down for a lower centre of gravity and ensures more uniform heat dissipation due to absence of a cam chain case.

One-piece head cover adds rigidity around the rocker arms to provide great high rpm performance and efficient heat dissipation.

Four-valve, pent roof cylinder head design uses two spark plugs per cylinder for efficient combustion and great power delivery at all rpms.

Valve train includes short design intake and exhaust rocker arms that reduce inertia during high-rpm performance.

Twin, crankcase-mounted, high-lift cams ensure strong acceleration and horsepower.

Hydraulic valve lifters driven by twin camshafts deliver exceptional performance and lower maintenance requirements.

Large-diameter pistons feature durable and lightweight forged construction to accommodate higher-rpm performance with reduced vibration and less reciprocating mass.

Larger-bore ceramic composite-plated cylinders provide uniform heat dissipation, reduce weight, reduce friction and increase cylinder service life.

Cooling fin thickness is optimized for maximum heat dissipation, thereby eliminating the need for liquid cooling, maintaining that traditional clean, air-cooled engine appearance.

40mm, twin-bore, downdraft Nippon throttle body fuel injection (FI) with throttle position sensor (TPS) uses a high-capacity, twin-stage air cleaner system ensuring optimal fuel delivery, great throttle response and maximum power throughout the rev range.

State-of-the-art Electronic Control Unit (ECU) ensures precisely metered fuel delivery and optimal ignition spark control using 3D transistorized coil ignition mapping for each cylinder.

High-performance, 2-into-1-exhaust system features 38mm stainless steel header pipes and a massive muffler that boosts torque and horsepower while producing a throaty, V-twin growl.

Dry sump lubrication system means a more compact engine design because the oil tank is not part of the engine, which lowers the centre of gravity for great handling. A handy, spin-on oil filter means fast, easy oil changes.

Smooth-shifting, 5-speed transmission features close-ratio gearing for spine-tingling roll-on performance at all rpm ranges.

Clean, quiet, low-maintenance belt drive system uses a special narrow design belt that reduces unsprung weight for great rear suspension performance.

Electric starting system features solenoid-activated auto-decompressor for fast, easy starting.

Air Induction System (AIS) injects fresh oxygen at the exhaust port to insure complete combustion thereby reducing harmful exhaust emissions (HC & CO) while a special air cut valve reduces backfiring when decelerating or coasting off throttle.

Chassis/Suspension:

Lightweight, aluminum, double-cradle frame increases rigidity by 40% (over standard Road Star frame) and offers tremendous strength and durability with minimal flex. This aluminum frame design is an industry-first for a cruiser-style motorcycle.

Incredible 38 degree lean angle ensures sporty handling (typical cruiser lean angles are approx. 30 ~ 33 degrees).

Sport bike inspired, aluminum, box section swingarm offers superb rigidity and a forward-mounted pivot point that ensures excellent stability, traction and handling. Another industry-first on a cruiser-type motorcycle!

Highly rigid, 8-way preload adjustable, 41mm Kayaba inverted fork offers 135mm (5.3") of wheel travel for exceptional sport-oriented handling.

Beefy, cast aluminum, top and bottom triple clamps help increase fork rigidity and reduce weight.

Link rear suspension features a preload and damping adjustable single rear shock delivering outstanding rear-wheel tracking for precise handling and plush ride quality. The shock is hidden to provide that classic "hardtail" look.

Rear shock adjustments include: spring preload and 18-way rebound damping.

Revised, dual 298mm front disc brakes feature new radial mounted, ultra rigid, 4-piston, monoblock calipers with fully floating rotors to provide sport-bike spec stopping power. Radial mounted calipers provide exceptional stopping power with great lever feel and feedback.

282mm rear disc brake with dual-piston caliper

All new "R-series" inspired lightweight 5-spoke mag wheels reduce weight and enhance handling qualities. The new mag wheels are fitted with tubeless 120/70-ZR18 front and a huge 200/50-ZR17 rear radial tires that provide awesome traction.

Two-piece seat design features a wide, flat profile for excellent rider comfort. The passenger seat features a flip at the rear of the seat providing a secure feeling for the passenger.

Powerful, 12V 60/55-watt, multi-reflector, halogen headlight

Totally trick, brushed aluminum, headlight-mounted digital tachometer also incorporates the odometer, dual tripmeters, fuel reserve tripmeter and clock.

Triple clamp-mounted, analog speedometer

New, beautiful braided steel throttle and clutch cables enhance that the Road Star's stylish custom look and image.

Features:

Industry-leading, Star Family fit and finish creates a machine as stunning as it is powerful.

Brilliant, highly visible, LED taillight

Sleek, easy to customize/paint real steel fenders

Stylish 3D Warrior emblem on fuel tank

Low-fuel warning light

Fork lock integrated into main ignition switch for extra convenience

The Road Star Warrior offers a significant level of power and performance. It is not intended for novice or inexperienced riders.


Specifications:

Engine

Engine Air-cooled, 4-stroke, OHV, 4-valve, 48°, V-twin w/EFI
Displacement 1,670 cc
Bore and Stroke 97 x 113 mm
Compression Ratio 8.4:1
Maximum Torque 13.8kg-m (100 ft-lb)@ 3750 rpm
Fuel Delivery Dual 40mm throttle body EFI
Ignition Digital TCI
Transmission Wide ratio 5-speed
Final Drive Belt

Chassis

Suspension (Front) Adjustable 41mm inverted fork
Suspension (Rear) Adjustable link-type Monocross
Brakes (Front) Dual 298mm discs
Brakes (Rear) Single 282 disc
Tires (Front) 120/70 ZR18 (radial)
Tires (Rear) 200/50 ZR17 (radial)

Details

Length 2,385mm (93.9'')
Width 955mm (37.6'')
Height 1,120mm (44.1'')
Wheelbase 1,665mm (65.6'')
Seat Height 730mm (28.7')
Dry Weight 275.5 kg (606 lb)
Fuel Capacity 15 litres (3.3 imp. gallons)
Colour(s) Deep Blue Metallic

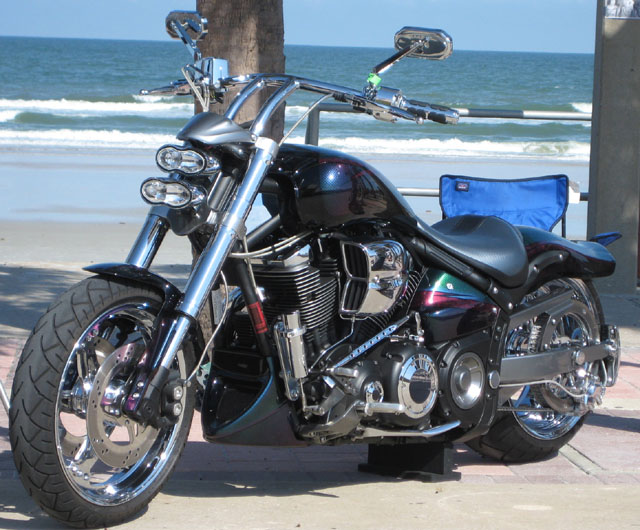

Dragonfly Road Warrior as it is now
See The Complete Build At
www.DragonFlyRoadWarrior.com

Build List Dragonfly Road Warrior

Part Number Description Price
10200078 Power Commander USB EFI controller $349.95
10200325 LCD display/data logger for Power Commander $299.95
10200327 Multi-function hub links LCD and Power Commander $189.95
06020004 GOODEN TIGHT RISERBUSHING $36.95
V18505 Vance & Hines Big Shots w/full heat shields $538.95
06010484 1-1/4" T-bars w/ 8" rise $149.95
Tire-11010430 Metzeler ME880 rear tire 240/40VR18 $311.95
Tire-11010432 Metzeler ME880 front tire 130/60VR18 $256.95
20010115 Drag Specialties Wave headlamp dual beam $119.95
16010200 Pingel Easy Shift electric shift kit $835.95
RoadWarrior RC Components wheels, rotors, rear pulley brake systems $4,740.00
06150045 Kuryakyn cover for clutch lever bracket $49.95
17310070 Kuryakyn cover for front master cylinder $39.95
06160011 Kuryakyn covers for handlebar switch housings $69.95
06100052 Kuryakyn wide hand levers for Warrior $32.95
STR-5PX39-10-07 Yamaha rear lever pedal w/holes $150.95
STR-5PX38-00-07 Yamaha shift lever with holes $118.95
STR-5PX08-00-YB Lower Cowel Onyx $246.95
20300195 Kuryakyn Curved Side Mount Without Tail Light $129.95
S-YA0175 Spiegler front brake lines $109.95
20-01011-52 Break Light Switch with single banjo bolt
93317-42550-00 Bearing ,Cyl #17 $18.48
SWINT-CP-RED Swint Led Light Red Custom Pro $249.00
TR-WR Tricky Air suspension kit for Warrior $875.00
3EG-14613-00-00 Yamaha Gasket, exhaust port $9.25
BL99232CH 10MMX1.25 BL BANJO BOLT $21.95
17659 Front master cylinder reservior tank and hose $23.95
59903CH 10MM BANJO HS END90DB STL $11.95
17410062 Goodridge 50" clear coat stainless brake line $40.95
59303CH GOODRIDGE 35 DEGREE 10MM BANJO $9.95
09131002 Micro Relay with DIODE $5.95
DS325849 Micro Relay with diode $5.95
STR-5PX27-05-01 BLT REAR AXEL CVRS $41.95
STR-5PX27-57-01 Billet Swingarm PVT $45.95
STR-5PX27-43-01 INSERT CLUTCH COVER $102.95
STR-5PX27-41-01 COVER CAM BILLET S $62.95
STR-5PX27-44-01 COVER TIMING BILLE $48.95
STR-5PX27-58-01 INSERTS FRAME BILL $89.95
STR-5PX36-70-07 BLT FTPEGS B $139.95
20500028 Badlands Metric Illuminator turn signal equalizer $104.95
